In today’s connected homes, advanced washers and dryers represent a significant investment, yet are still susceptible to silent killers that can affect appliance life: microsecond voltage spikes from grid switching or lightning strikes, periodic voltage sags, momentary surges during compressor startup,K11UKD washing machine and dryer voltage protector is essential voltage protection for modern appliances, preventing them with professional-grade protection.
Item No: K11UKD
【Automatic power off】Washing Machine And Dryer Voltage Protector
Analysis of the hazards of voltage fluctuations to washing machines and dryers
Risk of motor damage
Low voltage hazards: When the voltage is lower than the rated value (such as 220V), the washing machine motor may not start normally. Long-term low voltage state will cause the motor to overheat and shorten its service life.
High voltage hazards: Too high voltage (such as more than 240V) will accelerate the motor speed, causing overheating or even burning. Data shows that for every 10% increase in voltage, the motor loss increases by about 30%.
Electronic component failure
Voltage fluctuations may damage precision components such as control boards and sensors of washing machines and dryers. For example, high voltage surges can cause capacitor breakdown, while low voltage may cause program errors).
Safety hazards
Extreme voltage fluctuations may cause electrical fires. According to statistics, about 15% of household appliance fires are caused by abnormal voltage.
Degraded energy efficiency and performance
When the voltage is unstable, the heat pump system of the dryer may not operate efficiently, resulting in a 30%-50% increase in drying time and increased energy consumption.
Parameter
| Operating Voltage | 220V AC |
| Operating Frequency | 50 Hz-60 Hz |
| Under Voltage Cut-off | 165V(140V~180V adjustable) |
| Over Voltage Cut-off | 260V(230V~280V adjustable) |
| Delay Time | 5s/180s |
| Output Capacity | 15A,3300W |
| Packing | Color Box |
| Warranty | 1 Year |

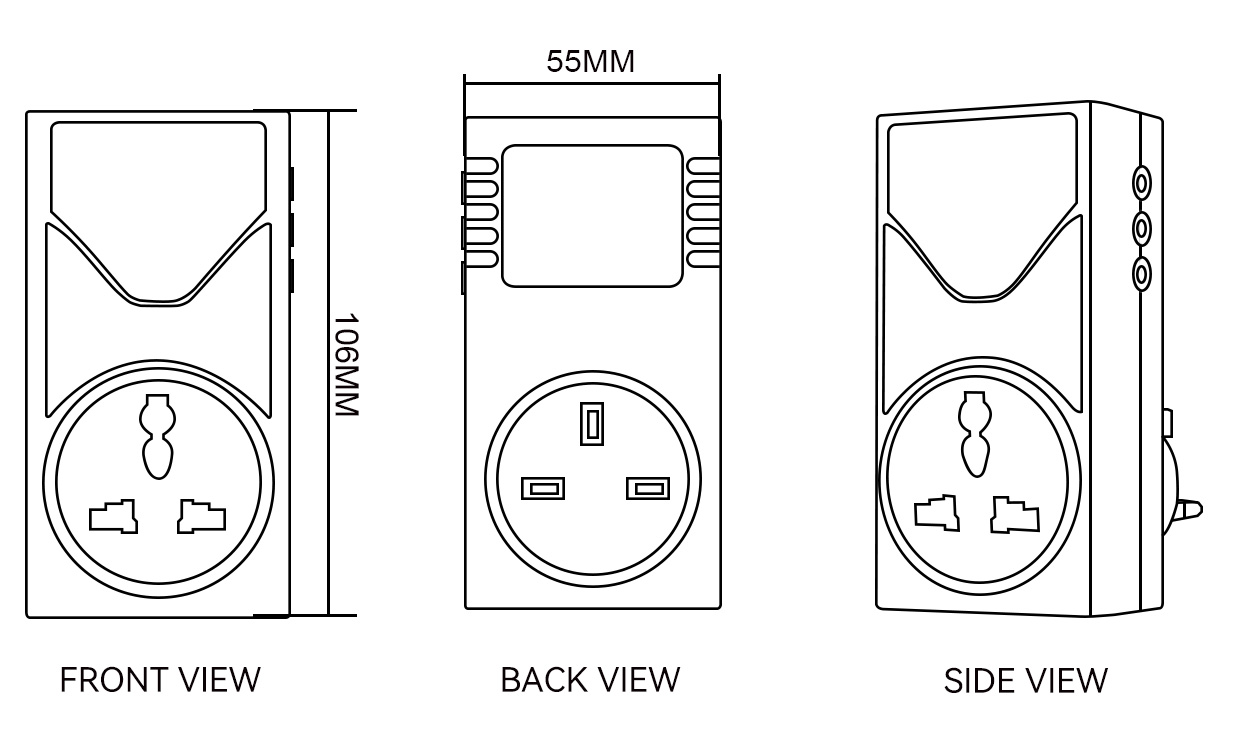

Dimension
How can I protect my washer and dryer from voltage fluctuations?
Dryer and washer voltage protector K11UKD automatically senses abnormal changes in voltage and reacts instantly to isolate overvoltage or undervoltage conditions, thereby protecting the electrical equipment connected to it. This protection is particularly important for home appliances such as dryers and washing machines, as they are usually connected to the home’s electrical system, where voltage problems can occur at any time.
【Automatic power off】Washing machine and dryer voltage protector K11UKD | Household appliance overvoltage protection solution
By using a Dryer and washer voltage protector K11UKD, you can ensure that your dryer and washing machine operate within a safe voltage range, extend their lifespan, and reduce repair and replacement costs due to voltage problems. At the same time, the voltage protector also provides additional safety protection, preventing dangerous situations such as fire or electric shock caused by voltage problems.

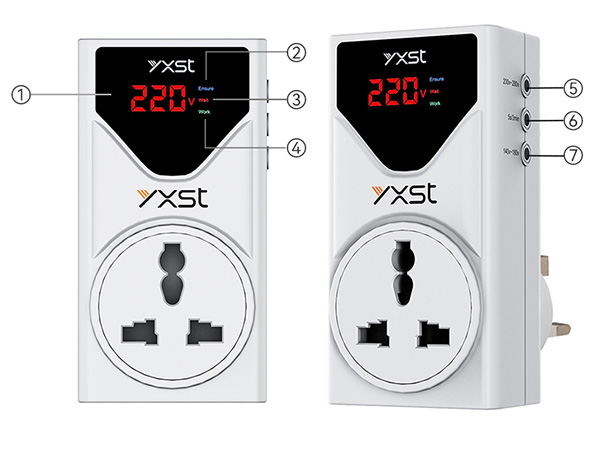

Instruction
| ① Digital Display | |
| ② Ensure: | Warranty |
| ③ Wait: | Delay |
| ④ Work: | Normal voltage |
| ⑤ HIP: | 260V (230V~280V adjustable) |
| ⑥ Delay Time: | 5s/180s |
| ⑦ LOP: | 165V (140V~180V adjustable) |
| Package info | Carton | Q’TY | G.W | SINGLE PACK |
| 55.5*34.5*47 CM | 100PCS | 21KGS | Color Box |
Therefore, in order to protect your dryer and washing machine from voltage problems, it is recommended to install a voltage protector and ensure that it is in good working condition.
K11UKD voltage protector installation guide (5-step simplified version)
Applicable equipment: washing machines, dryers, and other household appliances (rated power ≤ 3000W)
Step 1: Connect the power socket
1. Select the socket:
– Make sure to use an AC 220V/50Hz power socket with a grounding wire (three-pin).
– ❗ Do not use extension cords or non-grounded sockets (prone to cause protection failure).
2. Initial connection:
– Plug the K11UKD directly into the socket, and the red indicator light will turn on (standby state).
Step 2: Disconnect the power supply of the protected device
1. Safe operation:
– Turn off the power switch of the washing machine/dryer and unplug the original power plug.
– ⚠️ Be sure to dry your hands before operating in a humid environment.
Step 3: Connect the protected device
1. Correct connection:
– Plug the device power cord into the output port of the K11UKD.
– ✅ Make sure the plug is fully inserted.
Step 4: Start the protection system
1. Grounding confirmation:
– Check whether the K11UKD grounding wire (yellow-green wire) is reliably connected to the socket ground wire.
– 🌩️ It is recommended to connect an additional lightning arrester in thunderstorm weather.
2. Power on activation:
– Press the power button on the side of K11UKD, and the green indicator light starts flashing (delay protection countdown).
Step 5: Complete protection activation
1. Delay mechanism:
– Wait for the 5s countdown to end (the green indicator light is always on), and the device automatically powers on.
– ⏱️ Forced startup is prohibited during the delay period (to prevent surge shock).
2. Status verification:
– Start the washing machine/dryer and observe the K11UKD indicator light:
– Green light is always on: normal protection status
– Red light flashes: power grid abnormality (voltage > 255V or < 170V)
⚠️ Safety warning
1. Prohibited operations:
– Plug and unplug equipment with power on (K11UKD power must be turned off first).
– Use multiple protectors in a stacked manner (may cause overload).
Optimization highlights:
1. Clarify the meaning of the indicator light status to facilitate troubleshooting.
2. Incorporate specific parameters (voltage threshold, power limit) to improve professionalism.
→ Washing machine surge protector analysis: How to protect your washing machine from power surges?
