Item No: V2205AR

Household Voltage Stabilizer 94 Joules Surge Protection

5A/6A/8A/10A Household voltage stabilizer 94 joules surge protection V2205AR series provides various options to cater to different power needs. By choosing the appropriate model based on your devices’ power consumption, you can enhance protection and ensure uninterrupted power supply during outages or surges.

Get a Quick Quote

Download PDF

Video

Share:

Determine Load Requirements:Calculate the total power draw of the equipment you plan to connect to the household voltage stabilizer 94 joules surge protection (computers, monitors, network equipment, etc.). Select a model that can easily handle this load.

Run Time: Consider how long you want the automatic voltage regulator (AVR) to support your devices during a power outage. Larger VA/W models generally allow for longer runtimes.

Surge Protection: Ensure that the automatic voltage regulation you select provides suitable surge protection to guard against spikes in electricity that can damage your equipment.

Connectivity Options: Check for the number and type of outlets on the automatic voltage regulation to ensure they meet your needs.

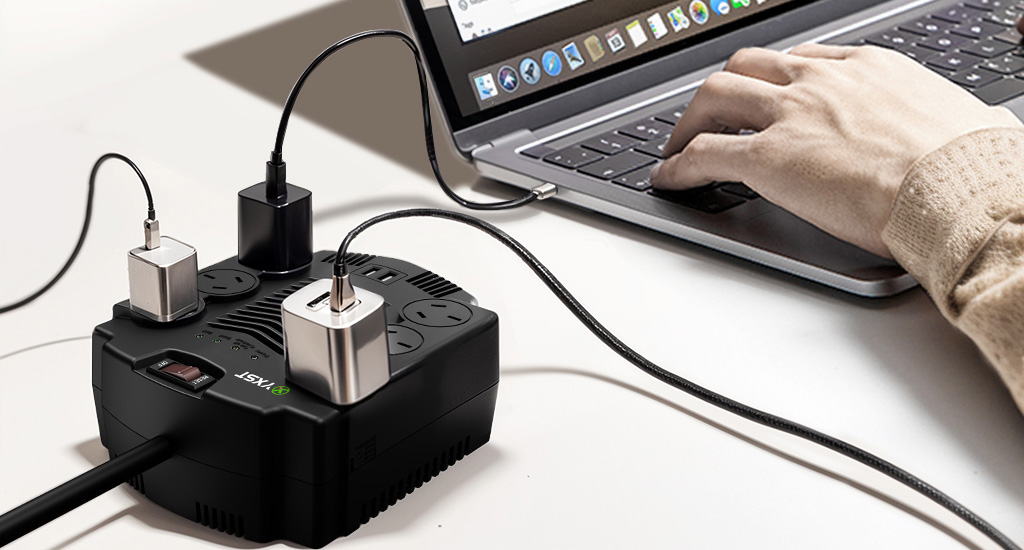

Automatic Voltage Regulation UPS V2205AR

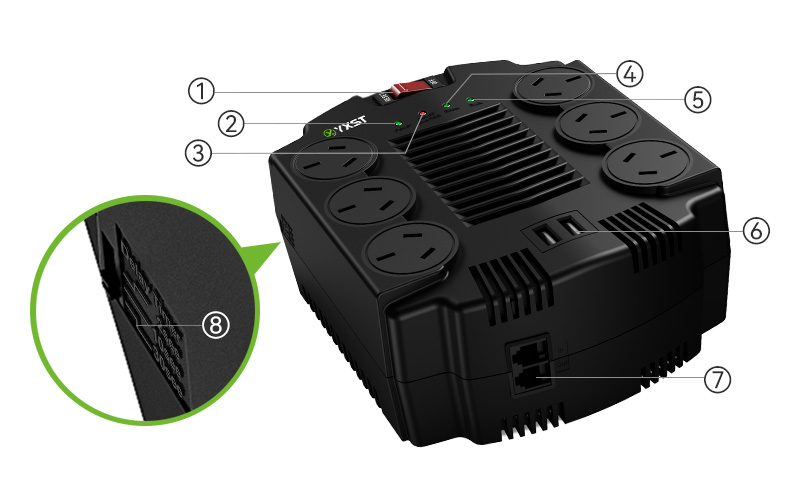

Household Voltage Stabilizer 94 Joules Surge Protection V2205AR Measures

① Switch
② Green Indicator: Power On/Off LED
③ Red Indicator: Abnormal
④ Green Indicator: Boost LED
⑤ Green Indicator: Buck LED
⑥ USB
⑦ Data line protection
⑧ Adjustable Delay Range

UPS Surge Protection V2205AR Instruction

Parameter

MODEL	V2205AR
CAPACITY	1200VA/600W-1M
	1600VA/800W-1M
	2000VA/1000W-1M
	2400VA/1200W-1M
INPUT
Voltage Range	150-270VAC
Joules	94J(14D391)
External Ports	RJ-45
Output
Voltage	220VAC
Output Receptacles	8pcs AVR regulated plus surge protected
Max spike current	5A\6A\8A\10A
Protection	Surge protection: 94 Joules
adjustable Delay Range	2S-10S-30S
STATUS INDICATORS
Power On/Off LED	Green
Boost LED	Green
Buck LED	Green
Abnormal	Red
ENVIRONMENT
Humidity	0-95%(Non-condensing)
Noise Level	Less than 40dB at 1Meter

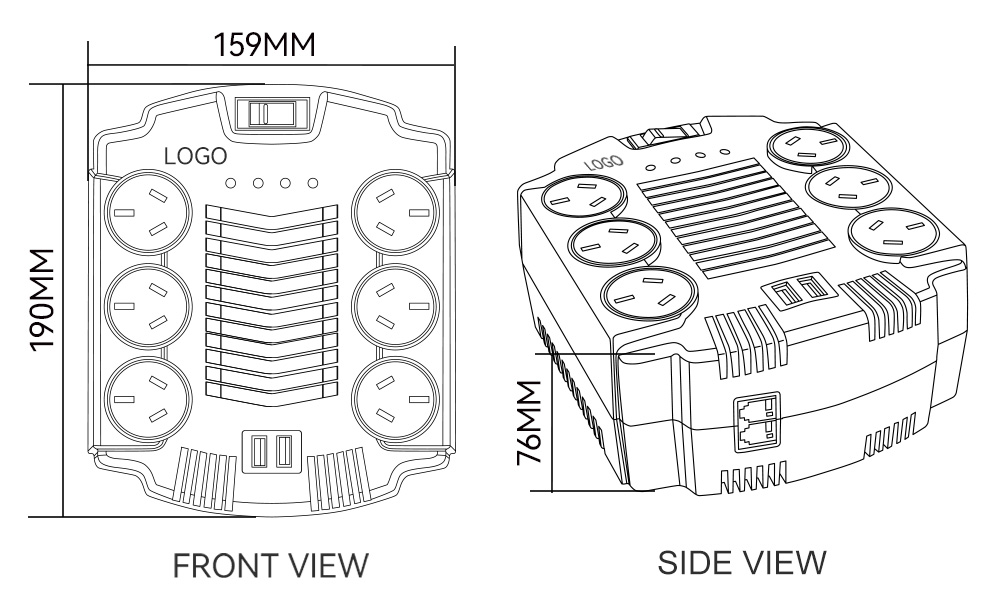

Dimension

Voltage Regulator UPS V2205AR Dimension

Package

Package info	Capacity	Carton	Quantity	G.W	Single Pack
Package info	1200W	35.22418.2cm	4PCS	10KGS	Color Box

Blogs

Understanding VA and Watts:
VA (Volt-Amperes): A measurement of apparent power in an AC circuit. It’s the product of voltage (in volts) and current (in amperes).
W (Watts): A measure of real power, which is the actual power consumed by the equipment.

The general rule of thumb is that the VA rating is typically higher than the Watt rating due to power factor considerations. The power factor varies based on the type of load; for most electronic devices, it’s usually around 0.6 to 0.8.
Each of the V2205AR 94 joules surge protection has a different power rating to meet various needs depending on the type of equipment you want to connect.
If you have specific equipment or load requirements, I can help you determine which model is best for you.
