Digital Display Voltage Protector For Microwave Ovens K03UKD

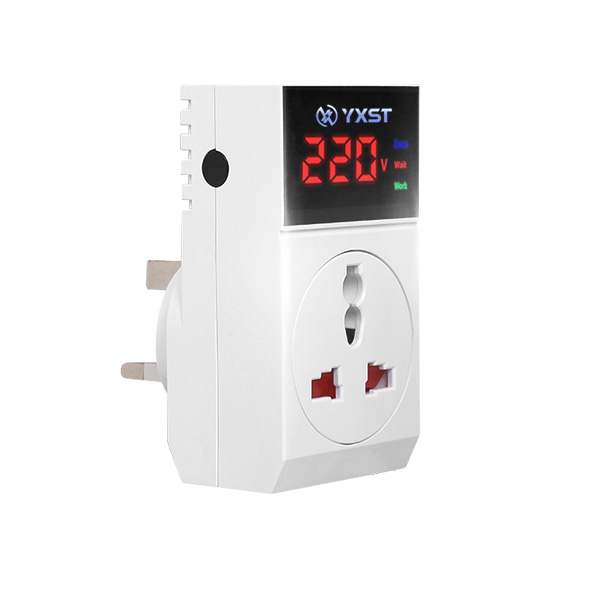

K03UKD Digital Display Voltage Protector

K03UKD Digital Display Voltage Protector For Microwave Ovens

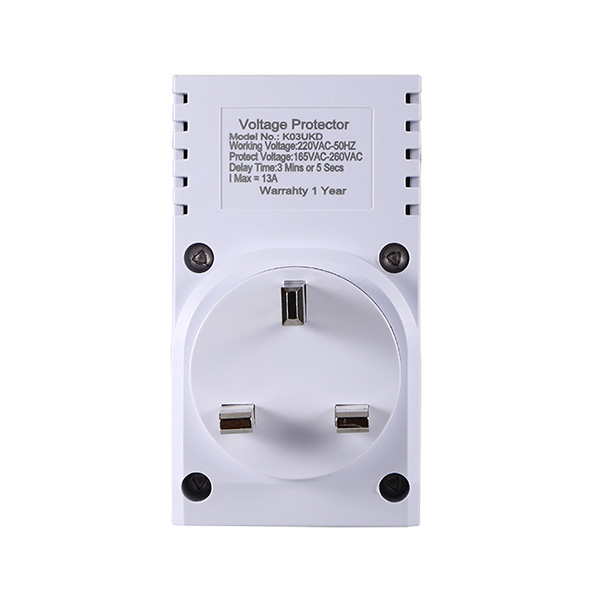

K03UKD Microwave Ovens Voltage Protector Back Image

Item No: K03UKD

Digital Display Voltage Protector For Microwave Ovens

Microwave ovens are a commonly used kitchen appliance. The standard voltage for household electricity is 220V AC. The K03UKD voltage protector with display screen protects microwave ovens from damage caused by abnormal voltage and ensures the safe operation of the equipment.

Get a Quick Quote

Download PDF

Video

Share:

Overvoltage protection
When the voltage rises abnormally, the overvoltage protector can automatically cut off the power supply to ensure the safety of the equipment.
Undervoltage protection
Undervoltage protection can suffocate the risk of equipment damage when the voltage is too low.
Short circuit protection
The protector should be able to detect a short circuit and quickly cut off the power supply.

Parameter

Operating Voltage	220V AC
Operating Frequency	50 Hz-60 Hz
Under Voltage Cut-off	165V(140V~180V adjustable)
Over Voltage Cut-off	260V(230V~280V adjustable)
Delay Time	210s+By Pass
Output Capacity	15A,3300W
Packing	Double Blister/ Color Box
Warranty	1 Year

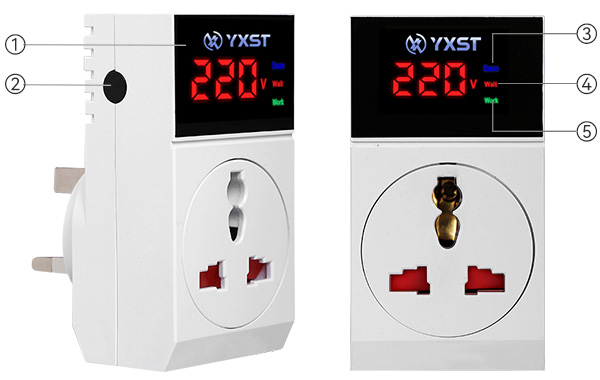

Instruction

① Digital Display
② By Pass
③ Ensure:	Warranty
④ Wait:	Delay
⑤ Work:	Normal voltage

K03UKD Digital Display Voltage Protector For Microwave Ovens Instruction

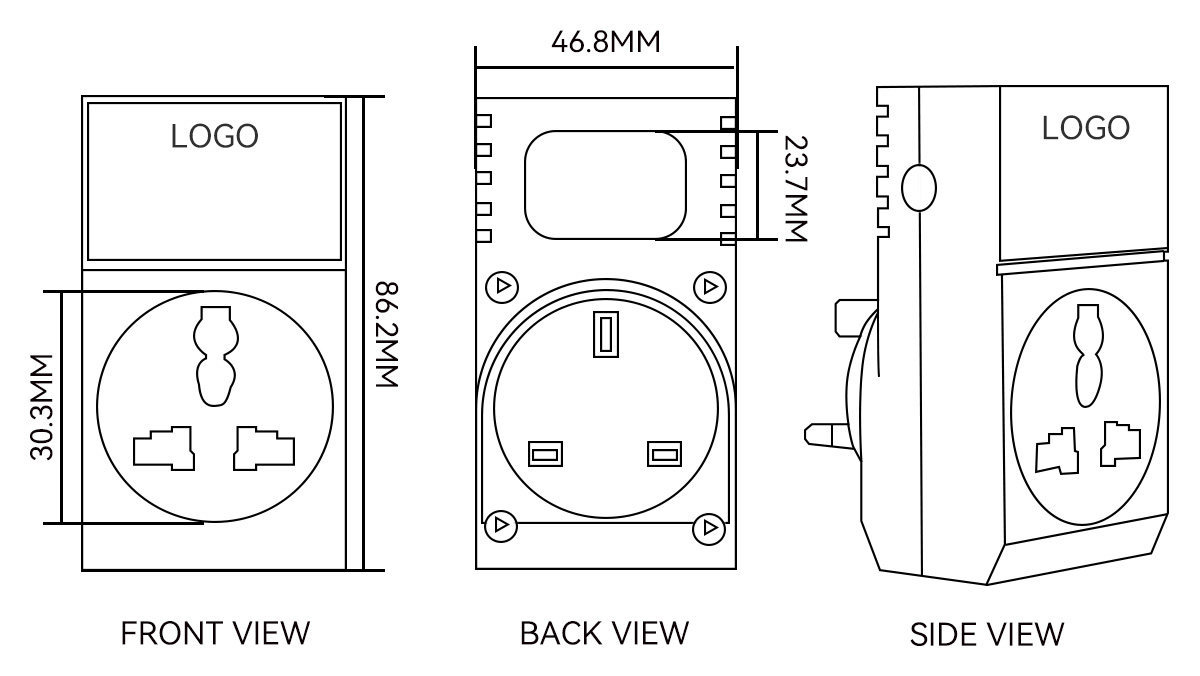

Dimension

K03UKD Digital Display Voltage Protector For Microwave Ovens Dimension

Packing

Package info	Carton	Q’TY	G.W	SINGLE PACK
Package info	6842.547.5CM	100PCS	17.2KGS	BLISTER

Digital Display Voltage Protector For Microwave Ovens K03UKD Design Considerations

Type: Consider using a smart voltage protector or surge protector, which can monitor and protect the microwave oven from voltage fluctuations during operation.
Response time: A fast-responding protector can cut off the power supply almost immediately when the voltage is abnormal to protect the equipment.
LED display: It can be used to display the current voltage, power, status, etc. so that users can monitor the operation of the equipment in real-time.
